Cold Plunge Installation

Set it up once. Plunge forever.

Unboxing, placement, and first fill — every step, walked through. Pick your model below.

HD Ultimate Bundle
An image of the HD ultimate bundle

Warning

Using an ice bath carries serious risks, including thermal shock, discomfort, hypothermia, or death. Make sure to use this product safely, according to your physical condition and your level of tolerance.

Before any use:

  • Use caution and listen to your body.
  • Consult a healthcare professional if in doubt.
  • Never use the bath alone.
  • Set up the unit on a stable surface and out of reach of children.


All safety instructions and restrictions can be found in our Terms of Use:
👉https://eternalicebath.com/policies/terms-of-service

Supported installations

Our warranty and technical support cover installations that use Eternal Ice components, hoses, and fittings as supplied and described in this guide. Custom or modified setups — homemade hoses, non-Eternal Ice fittings, custom plumbing, or altered configurations — can introduce air intake, leaks, poor water circulation, reduced efficiency, or premature wear, and our technical team may not be able to fully diagnose or support them. If you're planning a custom setup, reach out before you build it and we'll help you do it safely. Outdoor outlets must be installed with the chiller's plug oriented so the cord exits the bottom and forms a drip loop below the outlet; damage caused by water entering an outlet because the plug was installed cord-up, or by forcing the plug or cord, is considered misuse and is not covered by warranty.

Required tools

Teflon tape
Wrench
Pliers
Soft soap
Non abrasive cloth
Two people to move the equipment

Preparing the environment

Before proceeding with installation, make sure the chosen location is stable, level, and capable of supporting the weight of the bath filled with water. The area should be clear to allow adequate air circulation around the chiller and to facilitate connections. Also, ensure that the electrical access is compliant, protected from moisture, and located at a safe distance from splashes.

Avoid installing the bath in direct sunlight, as the exterior surface can become very hot, even burningly so to the touch, in addition to reducing the system’s energy efficiency.

Finally, allow enough space to maneuver the bath and chiller during installation.

In case of problem

Call us

(418) 809-0331

Write to us

info@eternalicebath.com

Parts
Eternal Ice HD Ultimate Ice Bath

Eternal Ice HD Ultimate Ice Bath

Quantity 1

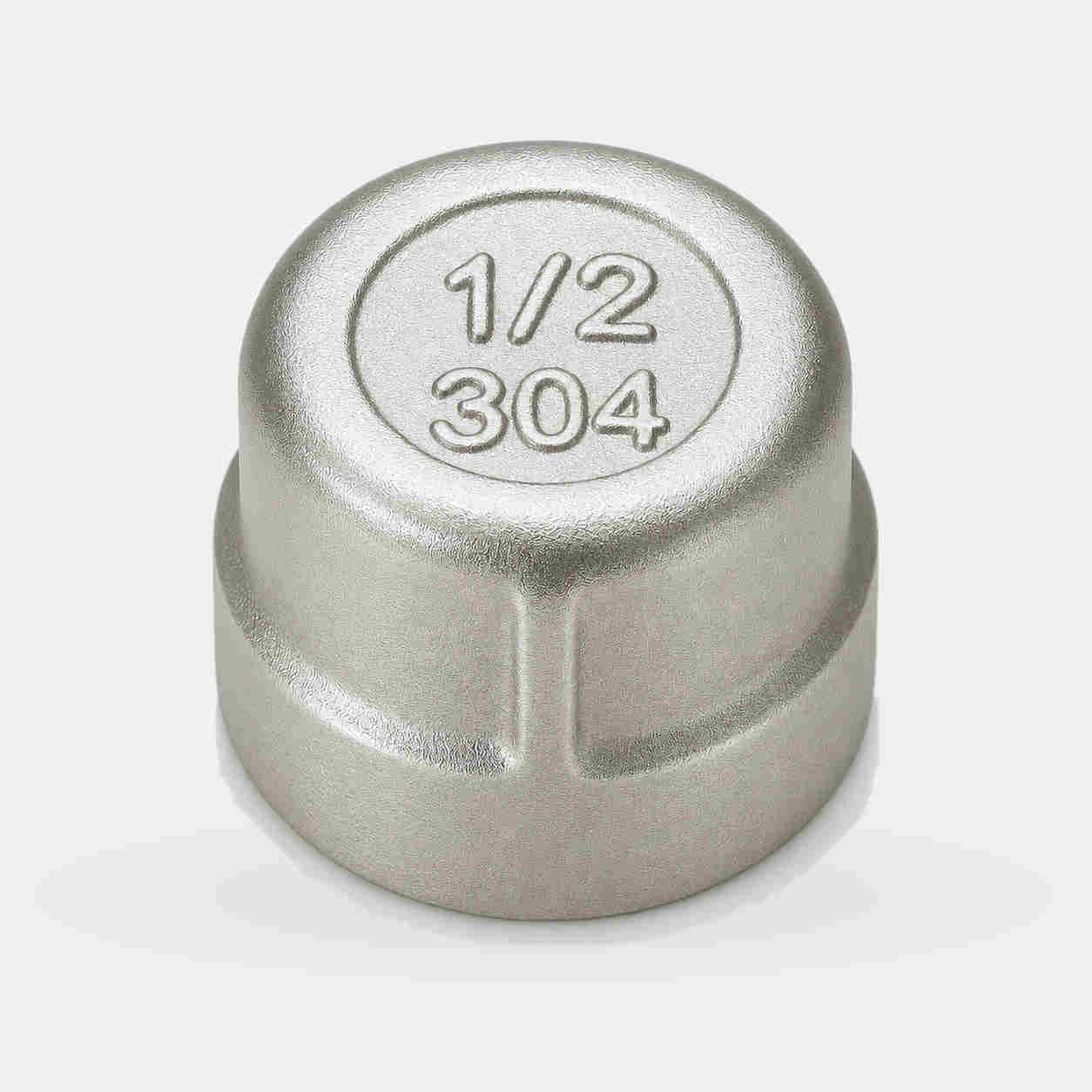

Fitting plug (pre-installed)

Fitting plug (pre-installed)

Quantity 2

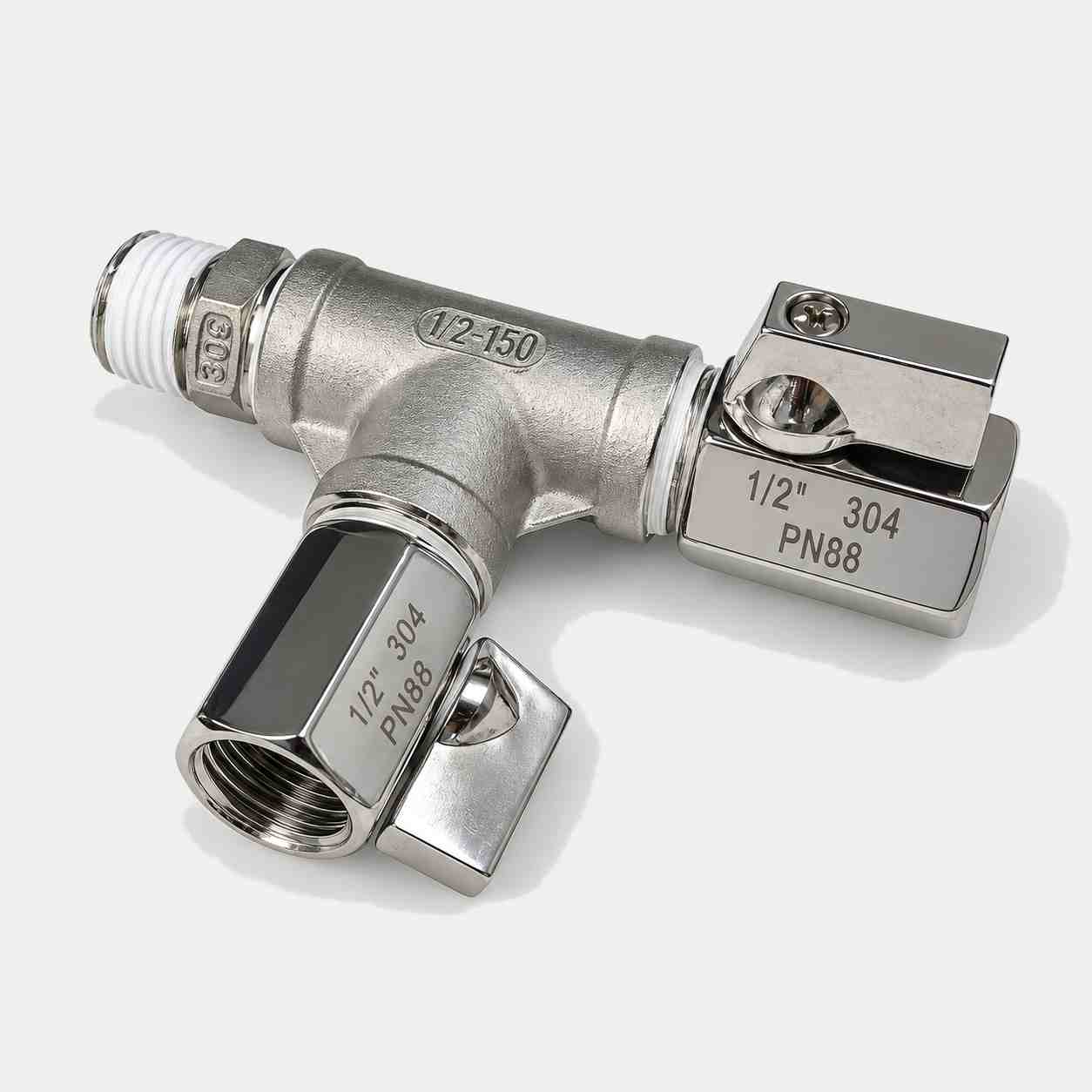

Drain valve assembly

Drain valve assembly

Quantity 1

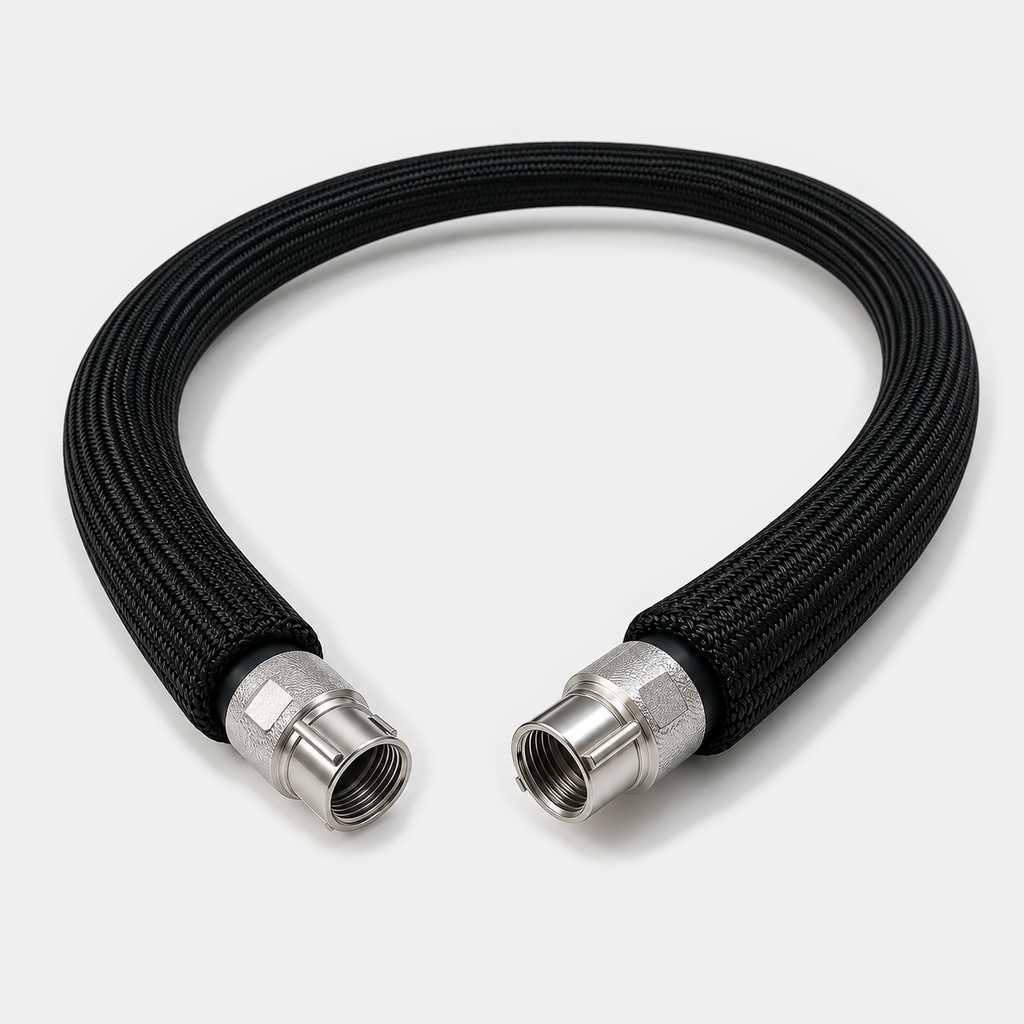

Insulated hoses 6 ft (1.8 m), quick-connect on both ends

Insulated hoses 6 ft (1.8 m), quick-connect on both ends

Quantity 2

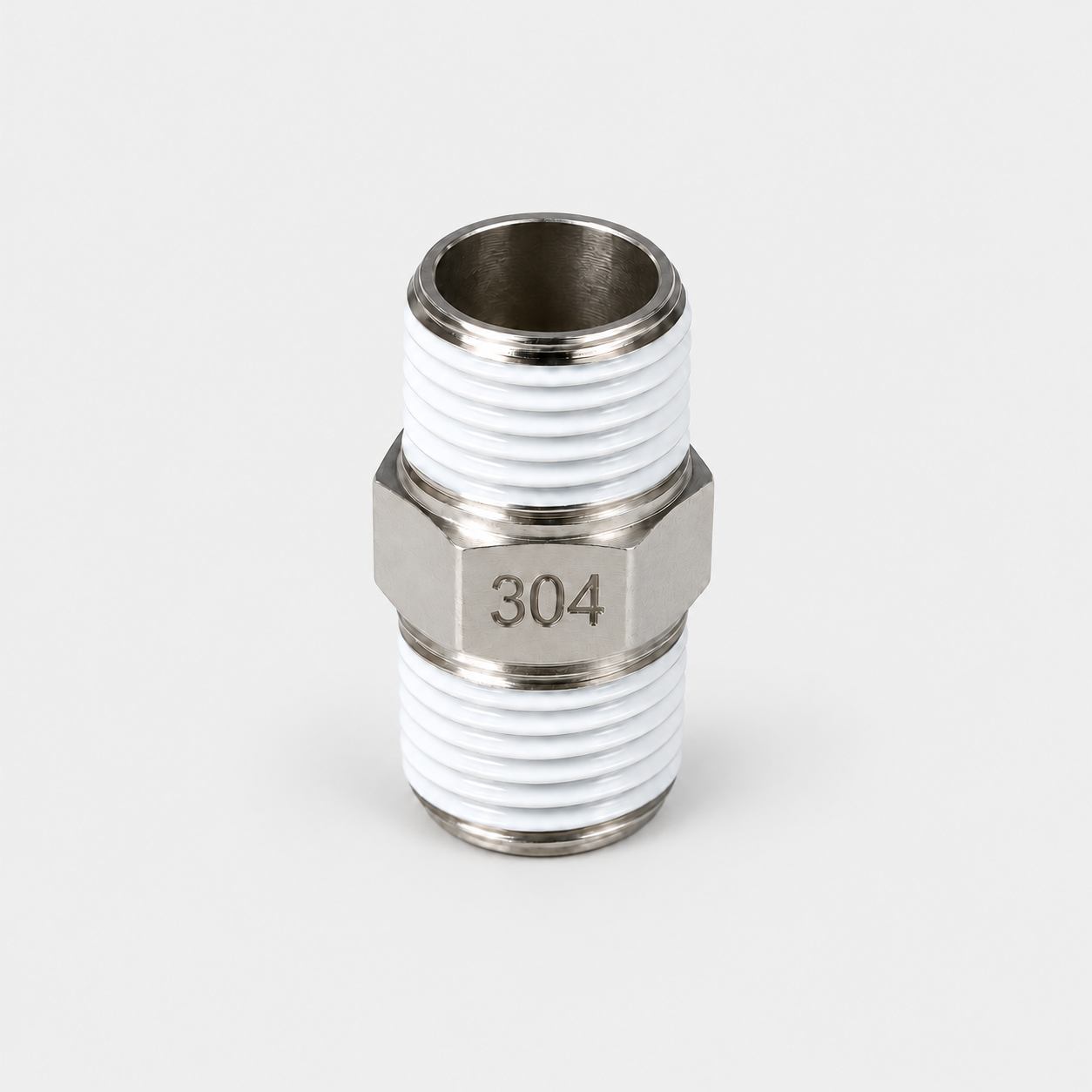

Double male adapter (pre-installed)

Double male adapter (pre-installed)

Quantity 4
Eternal Ice Power Chiller

Eternal Ice Power Chiller

Quantity 1

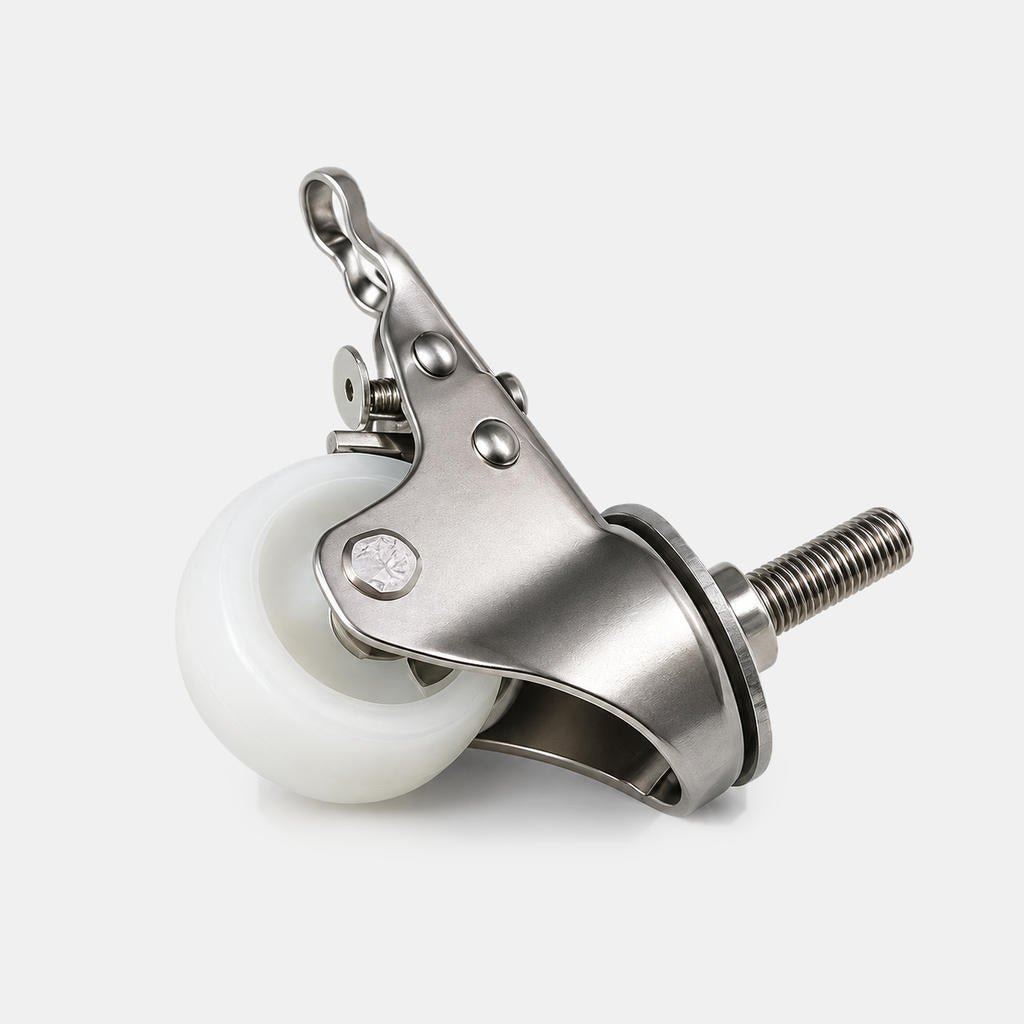

Power Chiller caster wheel

Power Chiller caster wheel

Quantity 4
Power Chiller filter

Power Chiller filter

Quantity 1

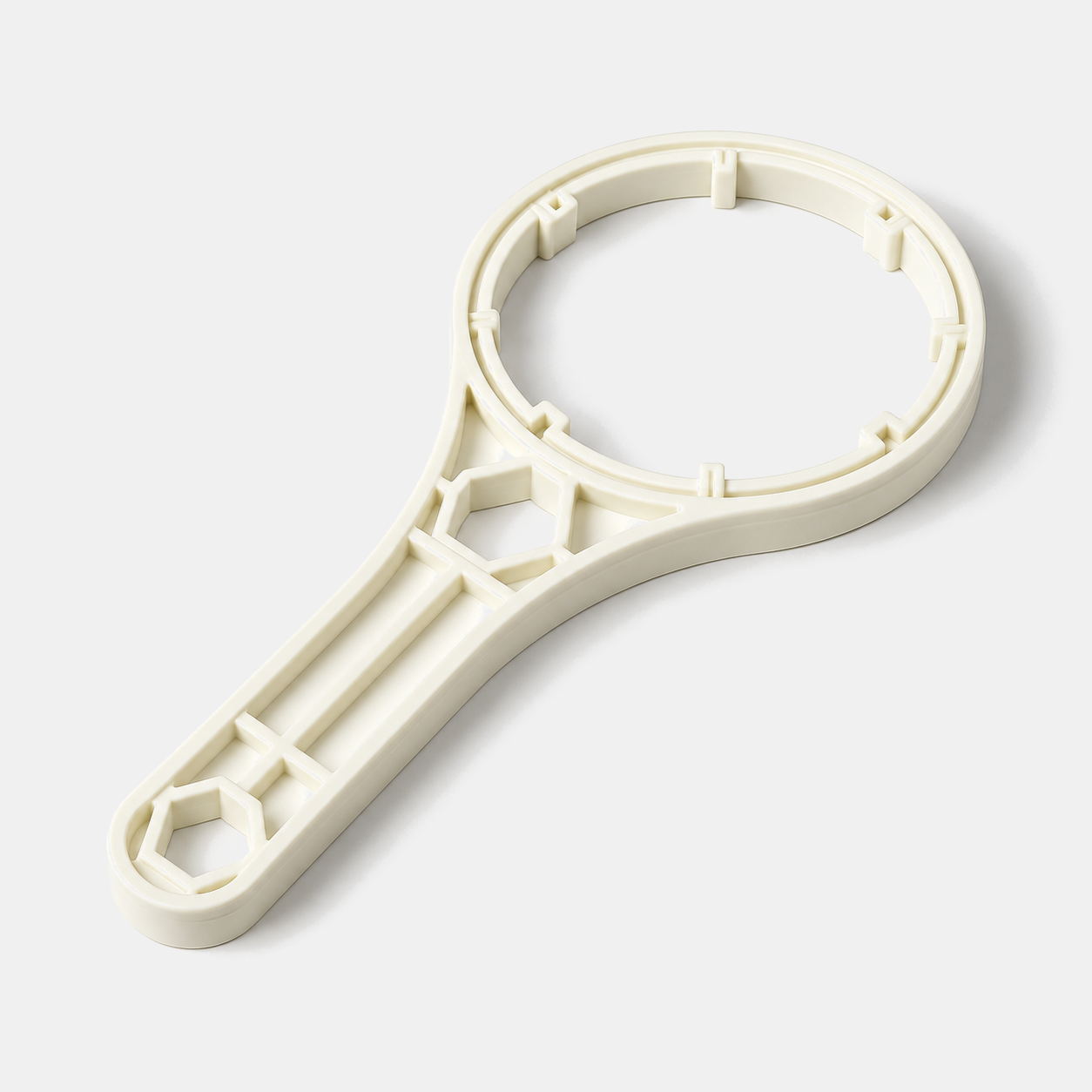

Power Chiller filter housing wrench

Power Chiller filter housing wrench

Quantity 1

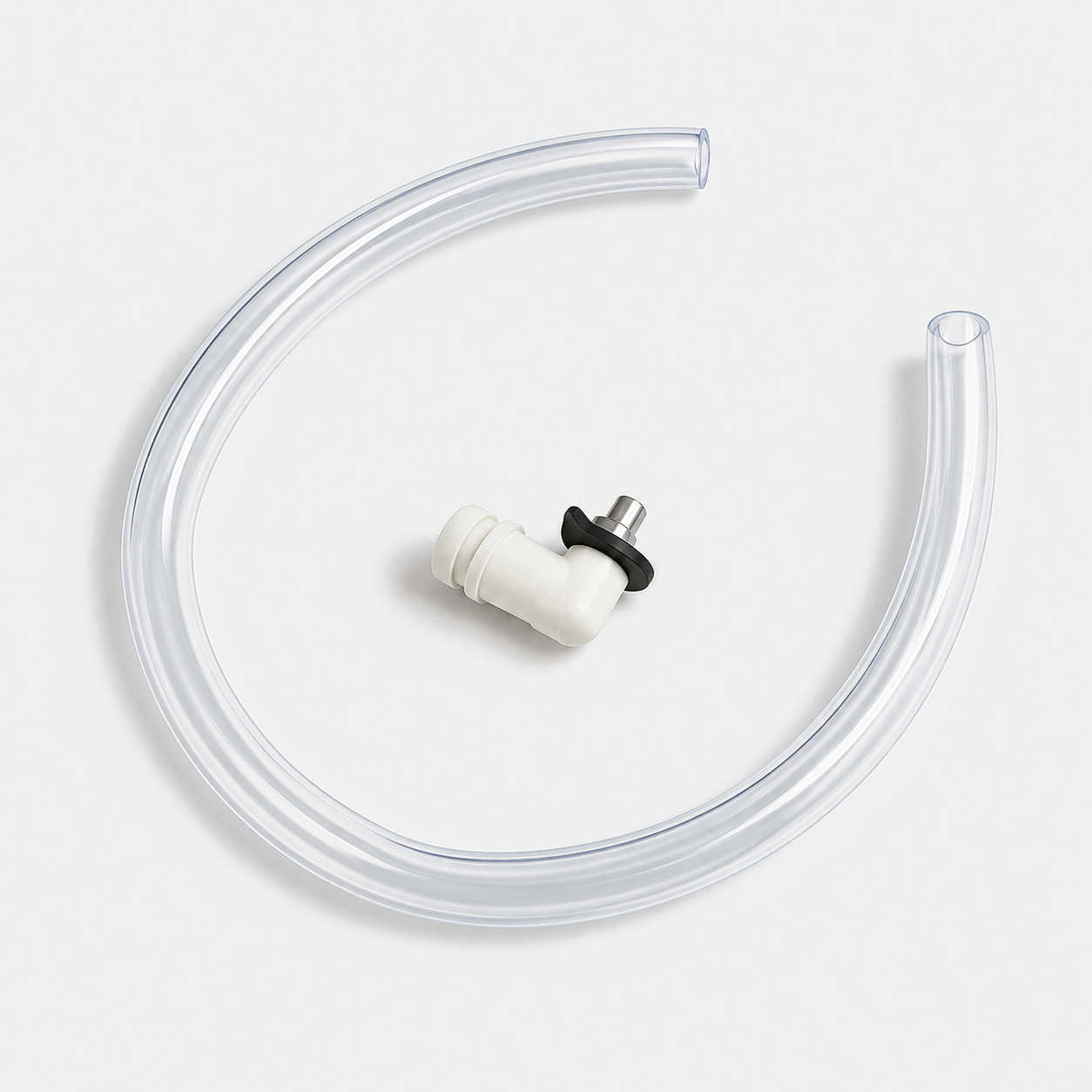

Power Chiller condensation drain kit

Power Chiller condensation drain kit

Quantity 1
Installation steps

  1. Step 1 Initial positioning of components


    Before starting assembly, move the bath, chiller, and all required accessories close to their final location. This should be done by at least two people due to the weight and size of the equipment. This reduces the risk of injury and damage to the components.

    Ensure the parts are placed on a stable and clean surface to prevent abrasion or deformation during handling.

  2. Step 2 Pre-cleaning the bath


    Before installation, carefully clean the interior of the bath using a non-abrasive cloth and mild soap. To access all surfaces more easily, it may help to gently lay the bath on its side.

    During manufacturing and fitting of the connectors, there may be light plastic residues or temporary odors from the molding process. A thorough cleaning removes these traces and prepares the surface properly.

    After cleaning, rinse thoroughly with plenty of water to remove all soap and residual particles. This ensures a clean bath ready for the next installation steps.

  3. Step 3 Preparing the chiller


    Carefully remove the chiller from its box and place it on a stable surface for easier handling. Install the provided wheels according to the included instructions.

    The included information booklet may also provide guidance and additional details for this step.

    Placement: level with the bath or lower

    Set the chiller on the ground beside the bath, at the same level as the tub or lower — never on a deck, shelf, or platform above it. The circulation pump is not self-priming: it relies on water reaching it by gravity. Placed higher than the bath, the pump has to lift water up the suction hose, loses its prime, and pulls in air instead of water — the same air intake behind most flow problems, and it can leave the pump running dry. Leave at least 30 cm (12 in) of clearance all around for ventilation; indoors, a ventilated room, never a closed enclosure.

  4. Step 4 Preparing threaded fittings and applying sealing tape


    Before installing the insulated hoses, first remove the plugs installed on the bath’s threaded fittings. Place them in a safe location to avoid losing them.

    Next, check if the threaded fittings on the bath and chiller already have sealing tape.

    If not, apply Teflon tape, wrapping firmly clockwise (in the direction of screwing) to ensure a proper seal and prevent leaks during operation.

    Note: If you notice the threaded fittings are not fully tight, you can adjust them with a wrench. Do not overtighten, especially on the bath, as this could damage the plastic threads.

  5. Step 5 Installing the drain valve assembly (if included)


    If a drain valve assembly is included with your kit, install it on the lower threaded fitting of the bath.

    Use a wrench to tighten the drain valve assembly while holding the threaded fitting in place with pliers to prevent it from turning or loosening during installation.

    Ensure the assembly is securely fixed, but do not overtighten to preserve the integrity of the bath’s plastic threads.

  6. Step 6 Installing the hoses

    Install the insulated hoses between the bath and the chiller, ensuring the correct flow direction:

    • The lower bath hose must always connect to the INLET of the chiller. Water is drawn from the bottom of the bath to the chiller.
    • The upper bath hose, used for the return flow, must connect to the OUTLET of the chiller. This hose returns the cooled water to the bath.

    Ensure all connections are secure but not over-tightened to guarantee leak-free operation.

  7. Step 7 Filling the bath


    Fill the bath with clean water up to the desired level. Ensure the water level is sufficient for adequate circulation to the chiller once the system is running.

  8. Step 8 Powering the chiller


    Plug the chiller into a 120 V compliant electrical outlet protected from moisture. Refer to the chiller’s instruction booklet for detailed operating procedures, available settings, and startup instructions.

    Plug orientation: drip loop

    Plug the chiller into an outdoor outlet so the cord exits the bottom and hangs in a loop below the outlet. Rainwater follows the cord by gravity: a drip loop lets it fall off before the outlet instead of running inside, which prevents short circuits. Never force the plug or cord.

  9. Step 9 Purging air from the chiller filter housing


    Slightly loosen the filter housing to release trapped air.

    Once water starts flowing, tighten the housing firmly to ensure a proper seal.

    This step is essential to avoid airlocks in the circuit.

  10. Step 10 Checking valves (if included)

    Make sure that:

    • The drain valve at the bottom of the bath is closed.
    • The main valve is positioned to allow water circulation to the chiller.

    These checks ensure safe startup and optimal water flow.

  11. Step 11 Starting the chiller


    Turn on the chiller to begin cooling the water. Monitor the first few minutes to confirm that circulation is stable and that no leaks are present.

    For detailed operating instructions, settings, and usage modes, consult the included chiller instruction booklet.
